$5.55
Original: $18.49
-70%20 Key LED RF Controller—
$18.49
$5.55The Story

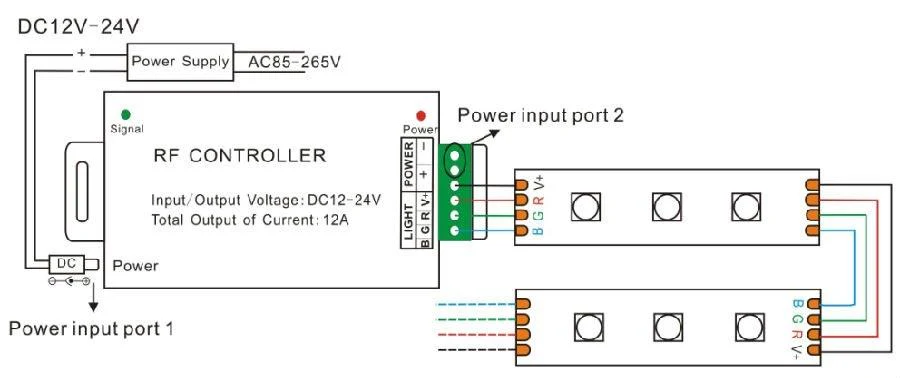

This LED RF Controller is used to control 12V RGB LED Light strips with common anode wiring. Included is a hand held wireless remote controller that controls one of eight different static colors or one of six different dynamic color changing patterns. The remote control is also used to adjust the pattern speed, play/pause, brightness, as well as turning the system ON and OFF.
Features
- RF wireless 20 key remote RBG controller
- Max output current: 4A*3CH,DC12V-24V
- 14 modes in total, including 8 static colors and 6 dynamic changes
- Adjustable speed for dynamic and static modes
Technical Specs
- Working temperature: -4 - 140F (-20 - 60℃)
- Supply voltage: DC12V~24V
- Output: 3 channels
- Connecting mode: common anode
- Dimensions: 5.25" x 2.5" x 1"
- Static power consumption: <1W
- Output current: <4A (each channel)
- Output power: 5V:<60W, 12V:<144W, 24V:<288W
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
This LED RF Controller is used to control 12V RGB LED Light strips with common anode wiring. Included is a hand held wireless remote controller that controls one of eight different static colors or one of six different dynamic color changing patterns. The remote control is also used to adjust the pattern speed, play/pause, brightness, as well as turning the system ON and OFF.
Features
- RF wireless 20 key remote RBG controller
- Max output current: 4A*3CH,DC12V-24V
- 14 modes in total, including 8 static colors and 6 dynamic changes
- Adjustable speed for dynamic and static modes
Technical Specs
- Working temperature: -4 - 140F (-20 - 60℃)
- Supply voltage: DC12V~24V
- Output: 3 channels
- Connecting mode: common anode
- Dimensions: 5.25" x 2.5" x 1"
- Static power consumption: <1W
- Output current: <4A (each channel)
- Output power: 5V:<60W, 12V:<144W, 24V:<288W
