LED Sync Controller with 20 Key Remote
HomeStore

LED Sync Controller with 20 Key Remote

LED Sync Controller with 20 Key Remote

$7.65

Original: $25.49

-70%
LED Sync Controller with 20 Key Remote—

$25.49

$7.65

The Story

This 20-key RF controller has an advance micro control unit used for controlling LED lights and works perfectly for our LED light strips. Connecting to existing strips and LED lights is easy and simple to use. Featured an RF 20 key remote control that allows you to choose from several colors and change dynamic modes such as brightness. The synchonization function allows you to sync LED lights between different units. The RJ45 connector allows users to connect multiple controllers together and sync several LED strips.
Features
  • RGB lighting. Max.output:3*8A
  • Voltage: DC12-24V
  • PWM digital technology. Signal frequency: 400Hz

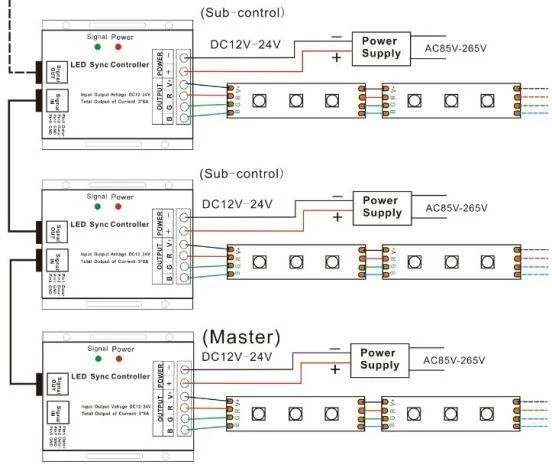

  • Multiple controllers connect via network RJ45 connector
  • RF 20-key wireless remote, RF frequency: 433.92MHz
  • 14 modes in total, including 8 static colors and 6 dynamic changes
Technical Specifications
  • Working temperature: -4 - 140F (-20 - 60℃)
  • Supply voltage: DC12V~24V
  • Output: 3 channels
  • Connecting mode: common anode
  • Dimensions: 3.5" x 3.5" x 1"
  • Static power consumption: <1W
  • Output current: <8A (each channel)
  • Output power: 5V:<120W, 12V:<288W, 24V:<576W
LED Sync Controller with 20 Key Remote - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

LED Sync Controller with 20 Key Remote - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

LED Sync Controller with 20 Key Remote - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

This 20-key RF controller has an advance micro control unit used for controlling LED lights and works perfectly for our LED light strips. Connecting to existing strips and LED lights is easy and simple to use. Featured an RF 20 key remote control that allows you to choose from several colors and change dynamic modes such as brightness. The synchonization function allows you to sync LED lights between different units. The RJ45 connector allows users to connect multiple controllers together and sync several LED strips.
Features
  • RGB lighting. Max.output:3*8A
  • Voltage: DC12-24V
  • PWM digital technology. Signal frequency: 400Hz
  • Multiple controllers connect via network RJ45 connector
  • RF 20-key wireless remote, RF frequency: 433.92MHz
  • 14 modes in total, including 8 static colors and 6 dynamic changes
Technical Specifications
  • Working temperature: -4 - 140F (-20 - 60℃)
  • Supply voltage: DC12V~24V
  • Output: 3 channels
  • Connecting mode: common anode
  • Dimensions: 3.5" x 3.5" x 1"
  • Static power consumption: <1W
  • Output current: <8A (each channel)
  • Output power: 5V:<120W, 12V:<288W, 24V:<576W
